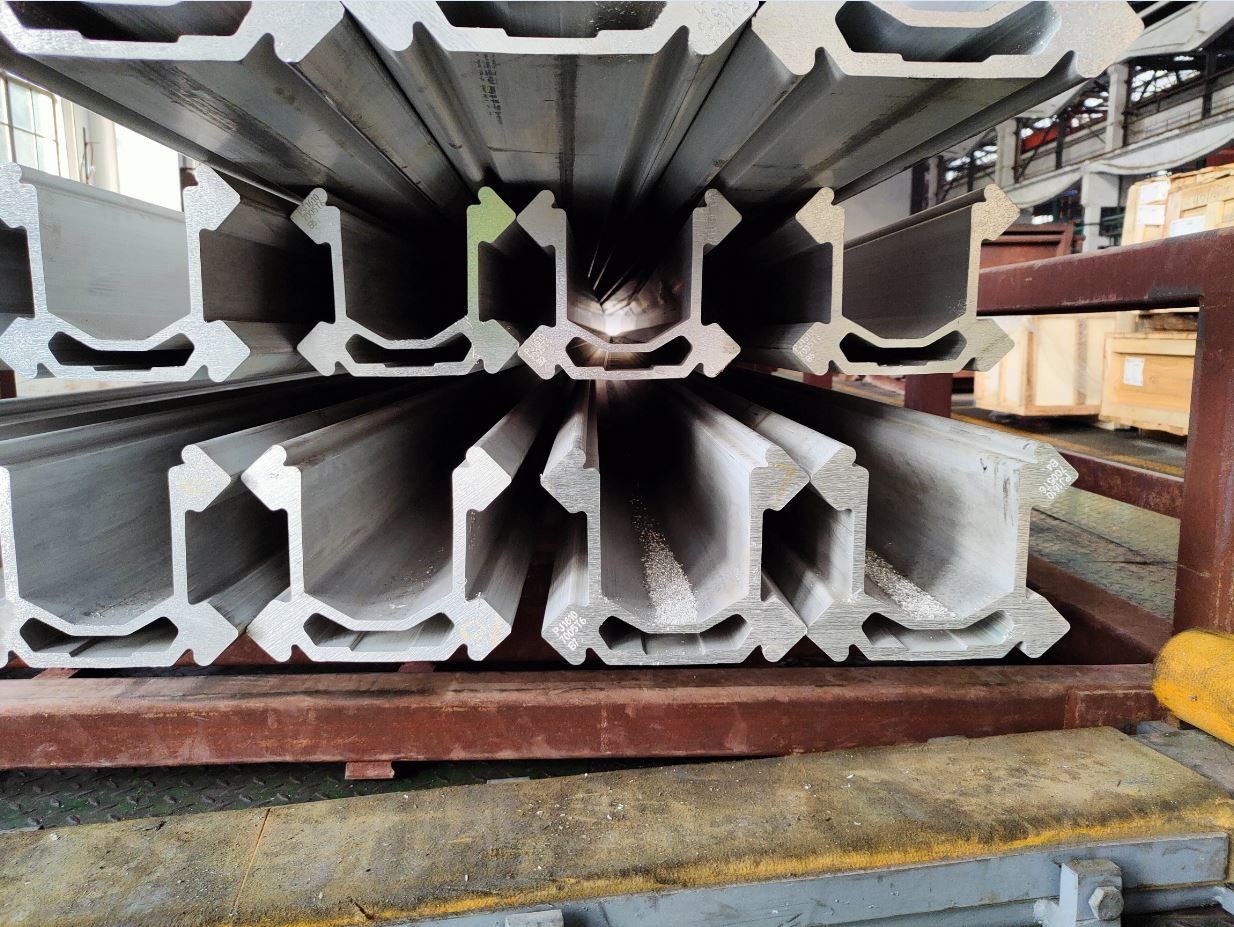

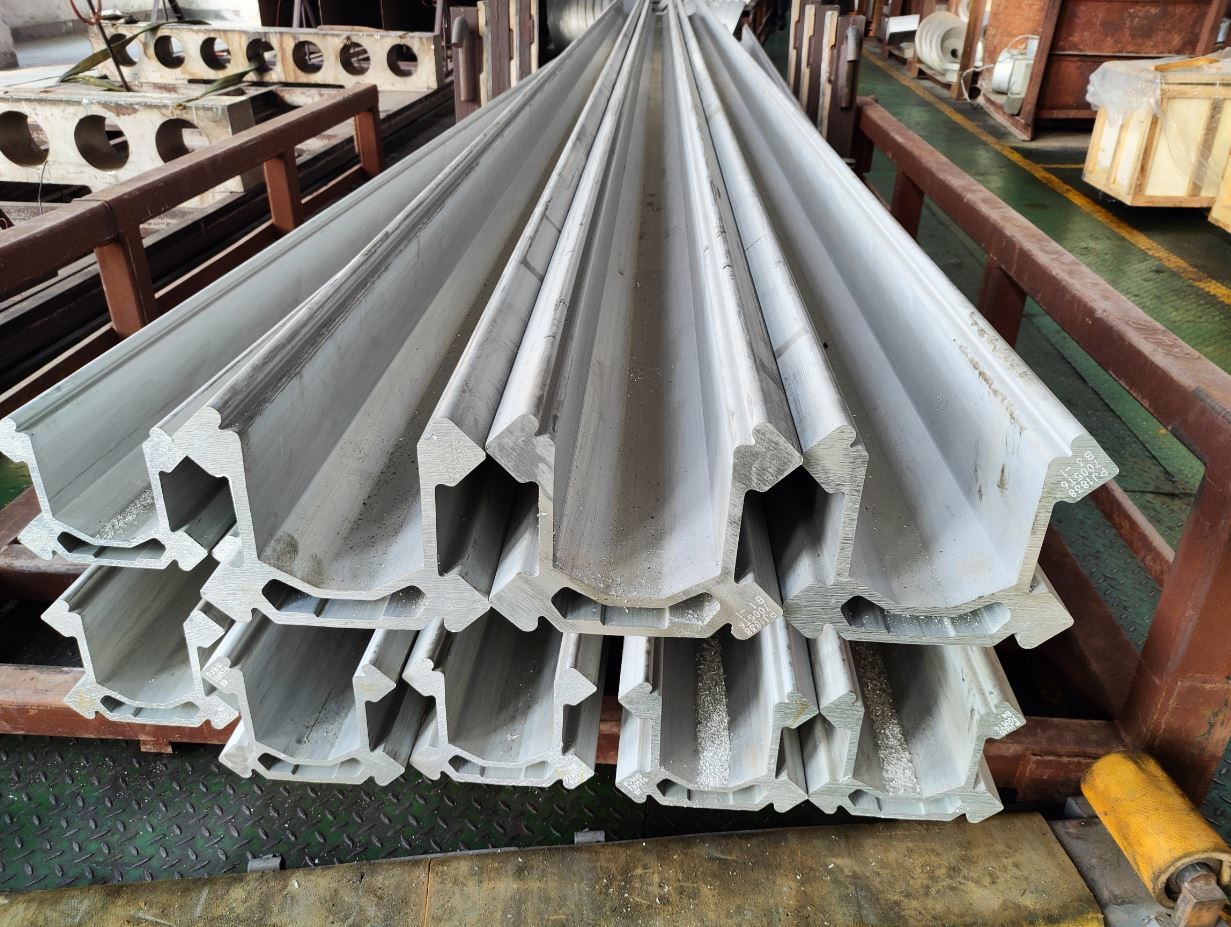

Mining Usage ATLAS BMH6000 Feed Beam Profiles Aluminium Extruded Profiles

  • 1
  • 2

Brand Name : HUANYU

Model Number : HYBMH6000

Place of Origin : People's Republic of China

MOQ : 10 PCS

Price : Negotiable

Payment Terms : T/T, T/T

Supply Ability : 86 PIECES PER MONTH

Delivery Time : Immediately

Packaging Details : Plywood Case Length 700cm

Feed Beam Type : BMH6000

Length : 7,250MM

Machining : As Per Machining Drawings

Material : 7000 Series Aluminum Alloy

Application : ATLAS 282 ROCK DRILLING RIG

Net Weight Per Meter : 29.3 Kilograms Per Meter

Length Availability : 3,000m through 7,250mm

Lead Time : Immediately

Contact Now

Mining Usage ATLAS BMH6000 Feed Beam Profiles Aluminium Extruded Profiles

FEATURES

BMH6000 ALUMINUM FEED BEAM PROFILES

1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 32kgs/meter

9. Package : Plywood case for Atlas Feed Beam

10. Single package size: Length x Width x Height = 742cm X28cm X28 cm

SPECIFICATIONS

BMH6000 ALUMINUM FEED BEAM PROFILES

Material Option Aluminum Alloy 7000 Series
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option 3000mm through 7300mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Mining Usage ATLAS BMH6000 Feed Beam Profiles Aluminium Extruded ProfilesMining Usage ATLAS BMH6000 Feed Beam Profiles Aluminium Extruded Profiles
