Drilling Machine 3100MM 7020 Extruded Aluminum Beams

Name: Drilling Machine 3100MM 7020 Extruded Aluminum Beams
Brand: HUANYU
Price: 1 USD

Quality Drilling Machine 3100MM 7020 Extruded Aluminum Beams wholesale

Brand Name : HUANYU

Model Number : HYAFB255

Place of Origin : People's Republic of China

MOQ : 5 Units

Price : Negotiable

Payment Terms : T/T, T/T

Supply Ability : 30 Units/Month

Delivery Time : 6 Weeks

Packaging Details : Plywood Case Length 400cm

Feed Beam Type : BMH255 BMH265

Length : 3100MM

Matchining : As Per Machining Drawings

Material : 7020 Aluminum Alloy

Application : ATLAS DRILLING RIG

Net Weight Per Meter : 39 Kilograms Per Meter

Length Availability : 2100m through 4550mm

Lead Time : 6WEEKS

Contact Now

3100mm Long Atlas BMH255 BMH265 Feed Beam Used On Atlas Drilling Machine In Mining Industry

1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 32kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 450cm X23cm X21 cm

Material Option	Aluminum Alloy 7020
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	3000mm through 4500mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Drilling Machine 3100MM 7020 Extruded Aluminum Beams

Product Tags:

7020 Extruded Aluminum Beams

Drilling Extruded Aluminum Beams

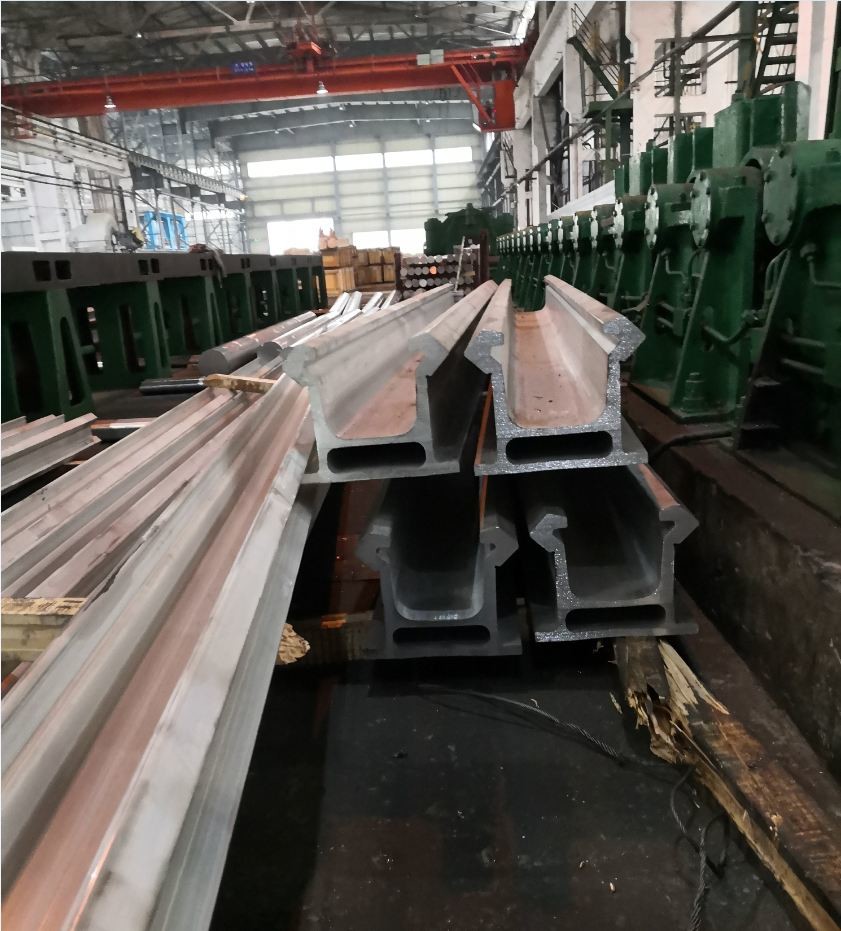

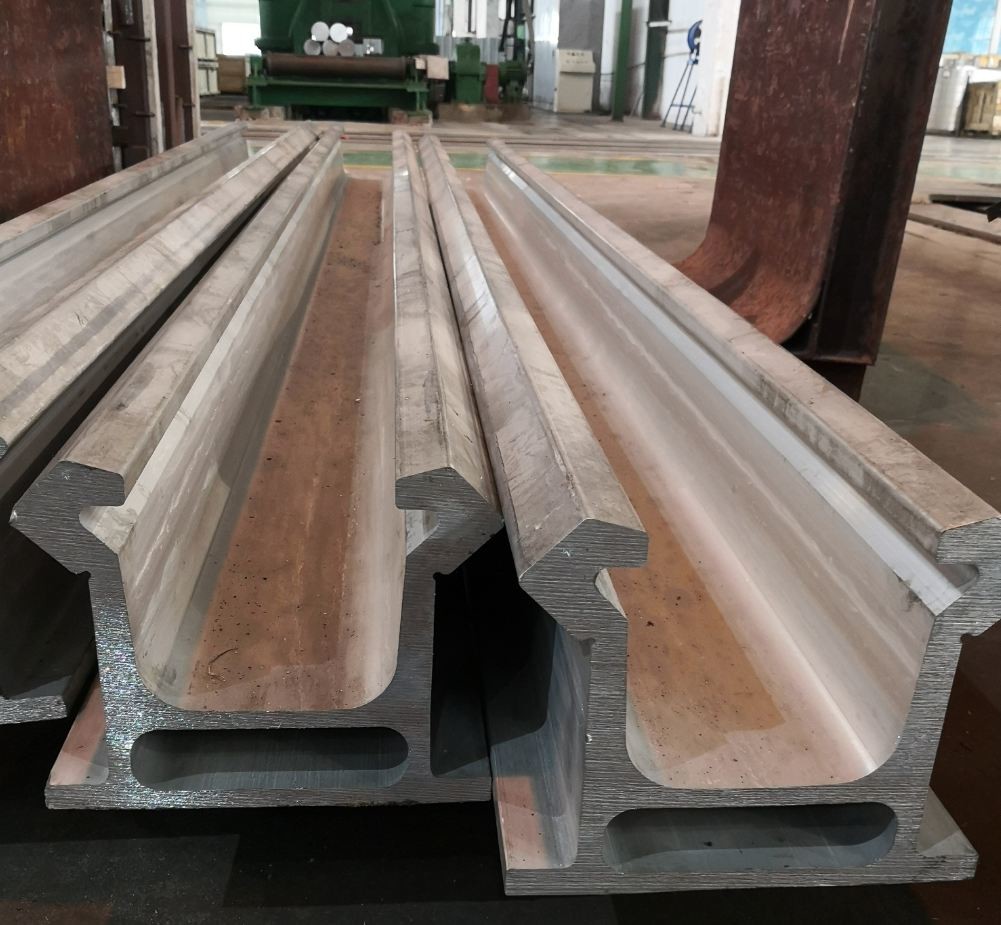

Drilling Machine 3100MM 7020 Extruded Aluminum Beams Images
