Professional Aluminium Extruded Profiles TF500 Feed Beam 16FT Long

Name: Professional Aluminium Extruded Profiles TF500 Feed Beam 16FT Long
Brand: HUANYU
Price: 4987 USD

Quality Professional Aluminium Extruded Profiles TF500 Feed Beam 16FT Long wholesale

Brand Name : HUANYU

Model Number : HYAFB7020SV

Place of Origin : People's Republic of China

MOQ : 5 Units

Price : US$4987-US$5500/Unit

Payment Terms : T/T

Supply Ability : 50Units/Month

Delivery Time : 1 Week

Packaging Details : Plywood Case Length 400cm to 700cm

Length : 16FT Long Feed Beam for Mining Industry

Application : Mining Industry, Tunnel Dring etc.

Materials : 7000 Series Aluminum Alloy

Weight Per Meter : Approximately 31KGS

Distoration Tolearnce : 5mm For Whole Length

Length Maximum : 8 Meters

Contact Now

Customized TF500 Feed Beam And Ensure Immediate Shipment

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm (16 feet equal to 4876.80mm )

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 28.7kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 488cm X19.7cm X19.6 cm

Material Option	Aluminum Alloy 7020
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Professional Aluminium Extruded Profiles TF500 Feed Beam 16FT Long

Product Tags:

Extruded Profiles TF500 Feed Beam

16FT Professional Aluminium Extruded Profiles

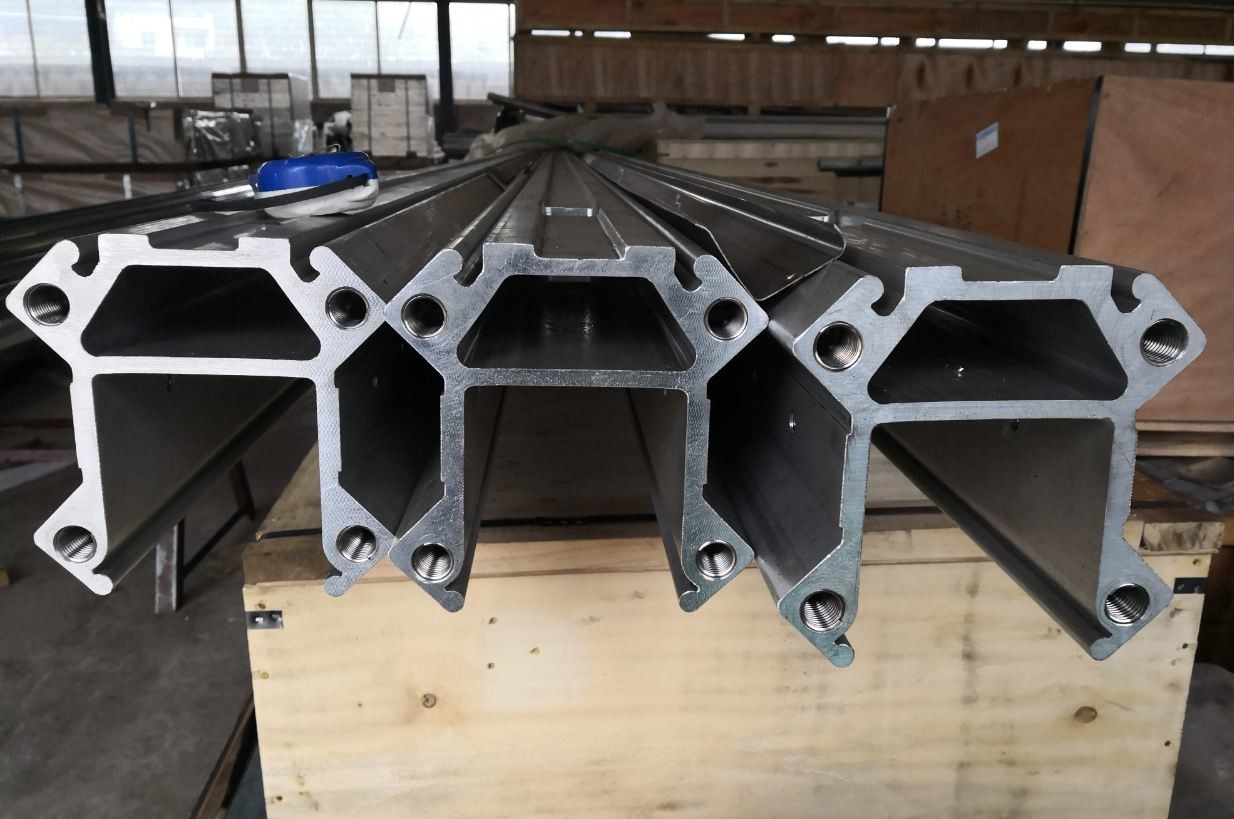

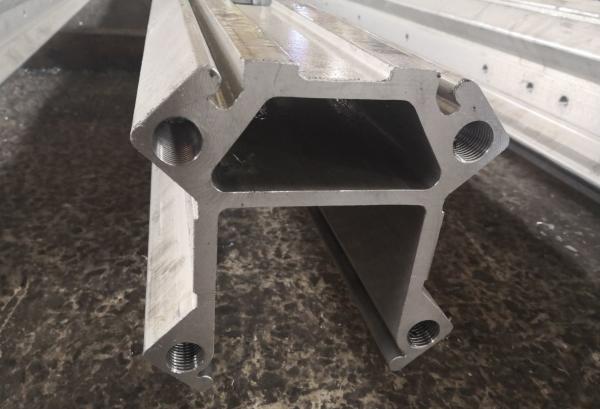

Professional Aluminium Extruded Profiles TF500 Feed Beam 16FT Long Images
